Extra large T-cut for fine construction of LED lamp heat sink in lighting equipment

In the field of lighting equipment manufacturing, efficient heat dissipation of LED lamps is directly related to the life and performance of lamps. As the key to heat dissipation, the fine structure of LED lamp heat sinks is crucial to its processing accuracy and quality control. A slight error may lead to uneven heat dissipation, affecting the luminous effect and stability of LED lamps. How to achieve precise processing of the fine structure of LED lamp heat sinks? Super-large T-type wire EDM machines are gradually becoming the new favorite of the industry.

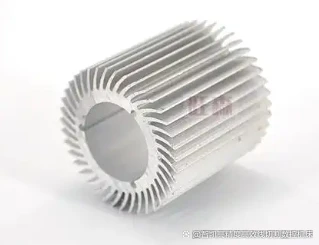

Taking the lighting equipment production process of a certain customer as an example, the fine structural parts of the LED lamp heat sink, such as cooling fins, complex flow channels and other components, have strict requirements on processing accuracy. The cooling fins need to ensure uniform thickness and precise spacing to achieve the best heat dissipation efficiency. Usually, the fin thickness tolerance needs to be controlled within ±0.05mm, and the spacing error must be less than ±0.1mm. It is difficult for traditional processing methods to ensure consistency on such a fine scale. With its powerful cutting ability and precise control technology, the super-large T-type EDM wire cutting machine can accurately cut fins with consistent thickness and uniform spacing along the preset trajectory when processing heat sink fins. Its super-large work surface can clamp multiple workpieces at one time, greatly improving production efficiency.

For the complex flow channel structure inside the LED lamp heat sink, the super-large T-type wire EDM machine can perform fine cutting in a small space through multi-axis linkage to ensure that the shape accuracy and surface roughness of the flow channel meet the design requirements. For example, at the bends of the flow channel, a smooth transition must be ensured to avoid sharp angles or rough surfaces to avoid affecting the flow of the coolant. However, it is not easy to process the fine structure of the LED lamp heat sink. On the one hand, the heat dissipation material used is mostly aluminum alloy. Although it has good heat dissipation performance, during the wire EDM process, the high temperature generated by the discharge is prone to cause local deformation of the material, affecting the accuracy of the fins and flow channels. On the other hand, the complex flow channel and dense fin design make the cutting path planning extremely complicated. Once a programming error occurs, the entire workpiece may be scrapped, increasing production costs.

Zhikai CNC has demonstrated outstanding strength in meeting these challenges. For a long time, Zhikai CNC has continued to increase its R&D investment and developed an advanced temperature control system for the fine structure processing of LED lamp radiators. It monitors and controls the temperature in real time during the cutting process, effectively reducing the deformation of aluminum alloy materials and ensuring processing accuracy. At the same time, the intelligent path planning software independently developed by Zhikai CNC can quickly generate the optimal cutting path for complex flow channels and fin structures, greatly improving programming efficiency and processing accuracy. In terms of after-sales service, Zhikai CNC has formed a professional after-sales team to provide 7×24 hours of caring service, from equipment installation and commissioning to daily maintenance and rapid response to sudden failures, to solve customers' worries in all aspects. "Precise cutting creates heat dissipation quality, and caring service wins the trust of the industry." Zhikai CNC not only performs well in the fine structure processing of LED lamp radiators, but also provides mature and reliable solutions for the cutting of other components such as lamp housing brackets and reflective cups in lighting equipment. Choosing Zhikai CNC means choosing cutting experts and all-round service guarantees in the field of lighting equipment manufacturing.
