How to determine the counting direction in CNC wire cutting?

CNC wire cutting is a processing method that uses a CNC system to control the cutting tool to perform cutting. When performing CNC wire cutting, it is necessary to determine the counting direction, that is, to determine the positive direction of each axis in the CNC system. The following will introduce how to determine the counting direction of CNC wire cutting.

1. Determine the coordinate system:

First, you need to determine the coordinate system in the CNC system. Commonly used coordinate systems are rectangular coordinate system and polar coordinate system. The rectangular coordinate system takes a certain point of the workpiece as the origin, and establishes three coordinate axes of X, Y, and Z, which represent the horizontal direction, vertical direction, and cutting depth direction respectively. The polar coordinate system takes a certain point of the workpiece as the origin, and establishes three coordinate axes of R, θ, and Z, which represent the radial direction, angle, and cutting depth direction respectively.

2. Determine the positive direction of the coordinate axis:

Determining the positive direction of the coordinate axis is the key to determining the counting direction. In a rectangular coordinate system, the positive direction of the X axis is usually set to the right side of the workpiece, the positive direction of the Y axis is in front of the workpiece, and the positive direction of the Z axis is above the workpiece. In a polar coordinate system, the positive direction of the R axis is usually set to the outside of the workpiece, the positive direction of the θ axis is counterclockwise, and the positive direction of the Z axis is above the workpiece.

3. Determine the starting point of cutting:

The cutting starting point is the starting position of CNC wire cutting. When determining the counting direction, you need to select a suitable cutting starting point. The selection of the cutting starting point should take into account the continuity of the cutting path and the cutting effect. Usually a corner or edge of the workpiece is selected as the cutting starting point.

4. Determine the cutting direction:

The cutting direction is the cutting path direction of CNC wire cutting. When determining the counting direction, you need to select a suitable cutting direction. The selection of the cutting direction should take into account the continuity of the cutting path and the cutting effect. Usually, the cutting direction consistent with the contour line direction of the workpiece is selected.

5. Determine the cutting order:

The cutting sequence is the cutting sequence of CNC wire cutting. When determining the counting direction, the cutting sequence needs to be determined. The selection of the cutting sequence should take into account the continuity of the cutting path and the cutting effect. Usually the cutting sequence from outside to inside and from top to bottom is selected.
In short, determining the counting direction is an important step in CNC wire cutting, which needs to be determined according to the specific processing requirements and workpiece shape. When determining the counting direction, it is necessary to determine the coordinate system, determine the positive direction of the coordinate axis, determine the cutting starting point, determine the cutting direction, and determine the cutting sequence. Through the reasonable selection of the counting direction, the processing efficiency and processing quality of CNC wire cutting can be improved.

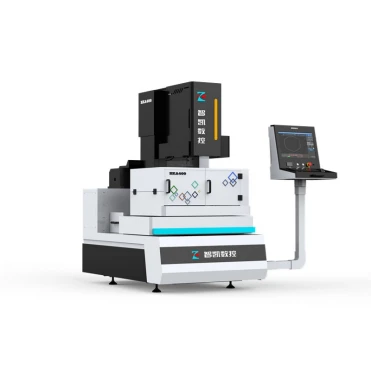

Zhikai ZKH550 wire cutting machine, five-axis servo drive, supports upper and lower special-shaped cutting, temporary axis shifting and one-button depth setting, and cutting of complex curved surfaces. It can achieve extremely high processing accuracy and surface roughness requirements, with excellent performance and easy operation! For more detailed information, please follow Zhikai CNC: 180-1313-1588!
